MODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |

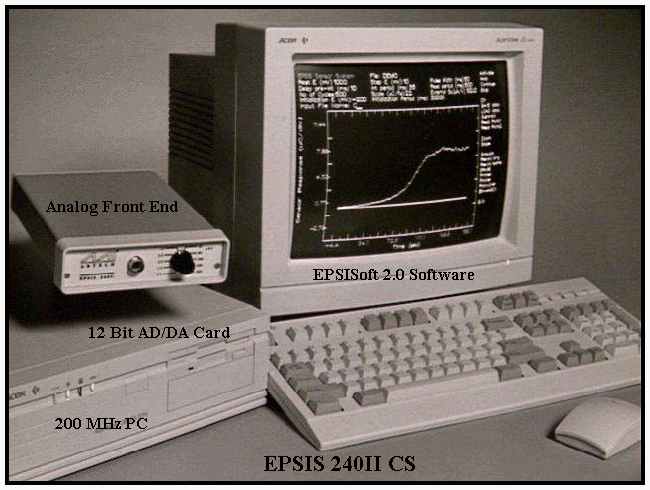

EPSIS 240 CS |
10,904.40 |
 |
Electroactive
Polymer Sensor Interrogation System (Complete Systems
Package) |
|
|
EPSIS 240 US |
8,954.00 |
|
Electroactive
Polymer Sensor Interrogation System (Unit Based Package) |
|
SSC 001 SENSOR SIMULATION CELL |
331.50 |
|
Thic cell simulates the responses of two pairs of EPMEs during interrogation using the EPSIS protocol. Comprises a RE 803 Agº/AgCl, 3MCl- miniature reference electrode, two Agº and two Ptº wire electrodes assembled in a covered 2.0 ml reaction cell. |
|
BIOANALYTICAL BIOTRANSDUCERS |
MODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |
AFFINITY BIOTRANSDUCERS WITH BIOTINYLATED SURFACE |
|
|
BB Au-1050.5-FD-Biotin (for static cell) |
305.50 |
|
BB Au-1010.3-FD-Biotin (for flow through cell) |
351.00 |
|
ACTIVATED BIOTRANSDUCERS WITH AMINE FUNCTIONALIZED SURFACE (-NH2/-NH3+) |
|
|
BB Au-1050.5-FD-NH2 (for static cell) |
266.50 |
|
BB Au-1010.3-FD-NH2(for flow through cell) |
312.00 |
|
ACTIVATED BIOTRANSDUCERS WITH CARBOXYLIC ACID / CARBOXYLATE (-COOH/COO-) |
|
|
BB Au-1050.5-FD-COOH (for static cell) |
266.50 |
|
BB Au-1010.3-FD-COOH (for flow through cell) |
312.00 |
|
ACTIVATED BIOTRANSDUCERS WITH HYDROXYL SURFACE (-OH ) |
|
|
BB Au-1050.5-FD-OH (for static cell) |
266.50 |
|
BB Au-1010.3-FD-OH (for flow through cell) |
312.00 |
|
ACTIVATED BIOTRANSDUCERS WITH SULFONIC ACID / SULFONATE SURFACE (-SO3H/-SO3- ) |
|
|
BB Au-1050.5-FD-SO3- (for static cell) |
266.50 |
|
BB Au-1010.3-FD-SO3- (for flow through cell) |
312.00 |
|
NON-ACTIVATED BIOTRANSDUCER - No surface activation |
|
|
BB Au-1050.5-FD-X (for static cell) |
227.50 |
|
BB Au-1010.3-FD-X (for flow through cell) |
273.00 |
|
ELECTROACTIVE POLYMER MICROSENSOR
ELECTRODES (EPMEs)
|
Polyaniline (PAn) / dodecylbenzene sulfonic acid (DBSA), polystyrenesulfonic acid (PSSA)
Polypyrrole (PPy) / dodecylbenzsene sulfonic acid (DBSA), polystyrenesulfonic acid (PSSA)
Poly(3-hexylthiophene) (PTh) / dodecylbenzsene sulfonic acid (DBSA)
MODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |
EPME 1050 M - PAn, PPy or PTh |
Monolithic |
182.00 |
|
EPME 1050 CD - PAn, PPy or PTh |
Combined Differential |
201.50 |
|
EPME 1050 FD - PAn, PPy or PTh |
Full Differential |
227.50 |
|

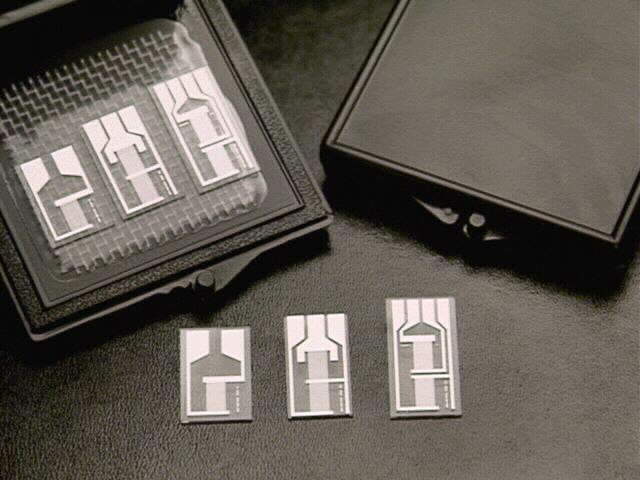

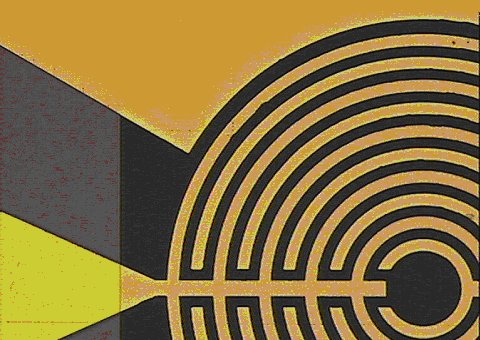

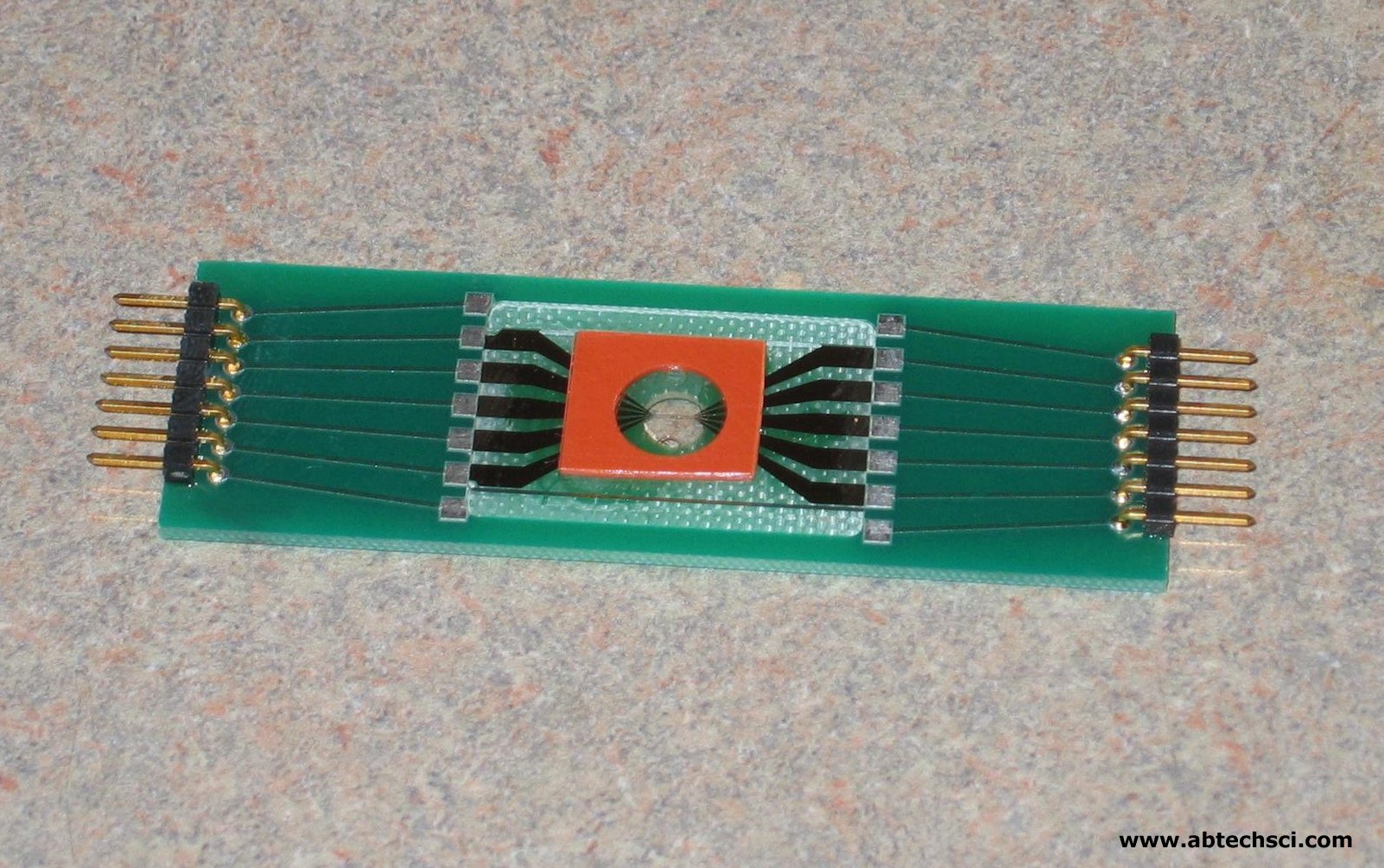

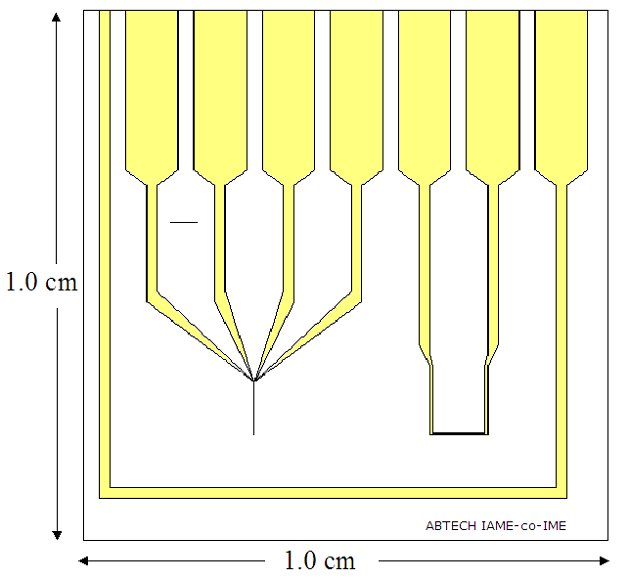

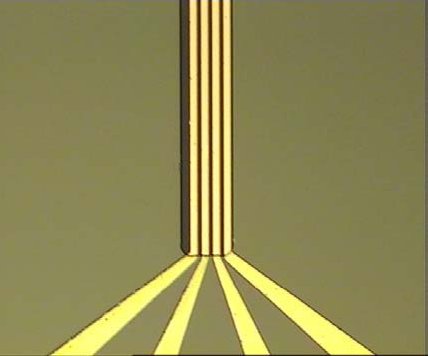

INTERDIGITATED MICROSENSOR ELECTRODES (IMEs) |
|
|
|
|
Gold |
Platinum |

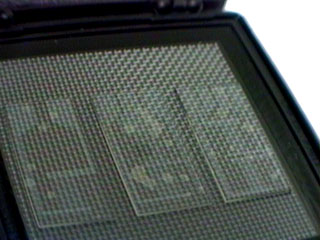

ITO |
|
GOLD (Au) IME ELECTRODES - 5 mm Series |
MODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |
IME 2050.5 SERIES (20 um) - GOLD |
1 - 4 |
5 - 9 |
10 + |
|
|
IME 2050.5 M-Au-U (Monolithic) |
75.00 |
71.25 |
67.50 |
|
|
IME 2050.5 M-Au-P |
111.97 |
106.37 |
100.77 |
|
|
IME 1550.5 SERIES (15 um) - GOLD |
1 - 4 |
5 - 9 |
10 + |
|
|
IME 1550.5 M-Au-U (Monolithic) |
93.30 |
88.63 |
83.97 |
|
|
IME 1550.5 M-Au-P |
130.28 |
124.77 |
119.25 |
|
|
IME 1550.5 CD-Au-U (Combined Differential) |
101.79 |
96.70 |
91.61 |
|
|
IME 1550.5 CD-Au-P |
138.76 |
132.82 |
126.88 |
|
|
IME 1550.5 FD-Au-U (Full Differential) |
111.03 |
105.48 |
99.93 |
|
|
IME 1550.5 FD-Au-P |
148.00 |
141.60 |
135.20 |
|
|
IME 1050.5 SERIES (10 um) - GOLD |
1 - 4 |
5 - 9 |
10 + |
|
IME 1050.5 M-Au-U (Monolithic) |
115.36 |
109.59 |
103.83 |
|
IME 1050.5 M-Au-P |
152.33 |
144.71 |
137.10 |
|
IME 1050.5 CD-Au-U (Combined Differential) |
123.85 |
117.66 |
111.47 |
|
IME 1050.5 CD-Au-P |
160.82 |
152.78 |
144.74 |
|
IME 1050.5 FD-Au-U (Full Differential) |
133.10 |
126.45 |
119.79 |
|
IME 1050.5 FD-Au-P |
170.06 |
162.60 |
155.09 |
|
IME 0550.5 SERIES (5 um) - GOLD |
1 - 4 |
5 - 9 |
10 + |
|
IME 0550.5 M-Au-U (Monolithic) |
215.45 |
204.68 |
193.91 |
|
IME 0550.5 M-Au-P |
252.43 |
240.81 |
229.19 |
|
IME 0550.5 CD-Au-U (Combined Differential) |
223.94 |
212.74 |
201.55 |
|
IME 0550.5 CD-Au-P |
260.90 |
248.86 |
236.81 |
|
IME 0550.5 FD-Au-U (Full Differential) |
233.18 |
221.52 |
209.86 |
|
IME 0550.5 FD-Au-P |
270.15 |
257.64 |
245.14 |
|
|
PLATINUM (Pt) IME ELECTRODES - 5 mm Series |
MODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |
IME 2050.5 SERIES (20 um) - GOLD |
1 - 4 |
5 - 9 |
10 + |
|
|
IME 2050.5 M-Pt-U (Monolithic) |
75.00 |
71.25 |
67.50 |
|
|
IME 2050.5 M-Pt-P |
111.97 |
106.37 |
100.77 |
|
|
IME 1550 SERIES (15 um) - PLATINUM |
1 - 4 |
5 - 9 |
10 + |
|
|
IME 1550.5 M-Pt-U (Monolithic) |
93.30 |
88.63 |
83.91 |
|
|
IME 1550.5 M-Pt-P |
130.28 |
124.77 |
119.25 |
|
|
IME 1550.5 CD-Pt-U (Combined Differential) |
101.79 |
96.70 |
91.61 |
|
|
IME 1550.5 CD-Pt-P |
138.76 |
132.82 |
126.88 |
|
|
IME 1550.5 FD-Pt-U (Full Differential) |
111.03 |
105.48 |
99.93 |
|
|
IME 1550.5 FD-Pt-P |
148.00 |
141.60 |
135.20 |
|
|
IME 1050.5 SERIES (10 um) - PLATINUM |
1 - 4 |
5 - 9 |
10 + |
|
IME 1050.5 M-Pt-U (Monolithic) |
115.36 |
109.59 |
103.83 |
|
IME 1050.5 M-Pt-P |
152.33 |
144.71 |
137.10 |
|
IME 1050.5 CD-Pt-U (Combined Differential) |
123.85 |
117.66 |
111.47 |
|
IME 1050.5 CD-Pt-P |
160.82 |
152.78 |
144.74 |
|
IME 1050.5 FD-Pt-U (Full Differential) |
133.10 |
126.45 |
119.79 |
|
IME 1050.5 FD-Pt-P |
170.06 |
162.60 |
155.09 |
|
IME 0550.5 SERIES (5 um) - PLATINUM |
1 - 4 |
5 - 9 |
10 + |
|
IME 0550.5 M-Pt-U (Monolithic) |
215.45 |
204.68 |
193.91 |
|
IME 0550.5 M-Pt-P |
252.43 |
240.81 |
229.19 |
|
IME 0550.5 CD-Pt-U (Combined Differential) |
223.94 |
212.74 |
201.55 |
|
IME 0550.5 CD-Pt-P |
260.90 |
248.86 |
236.81 |
|
IME 0550.5 FD-Pt-U (Full Differential) |
233.18 |
221.52 |
209.86 |
|
IME 0550.5 FD-Pt-P |
270.15 |
257.64 |
245.14 |
|
|
|
|
MODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |
IME 2050.5 SERIES (20 um) - ITO |
1 - 4 |
5 - 9 |
10 + |
||
IME 2050.5 M-ITO-U (Monolithic) |
75.00 |
71.25 |
67.50 |
|
|
IME 2050.5 M-ITO-P |
111.97 |
106.37 |
100.77 |
|
|
IME 1550.5 SERIES (15 um) - ITO |
1 - 4 |
5 - 9 |
10 + |
||
IME 1550.5 M-ITO-U (Monolithic) |
93.30 |
88.63 |
83.97 |
|
|
IME 1550.5 M-ITO-P |
130.28 |
124.77 |
119.25 |
|
|
IME 1550.5 CD-ITO-U (Combined Differential) |
101.79 |
96.70 |
91.61 |
|
|
IME 1550.5 CD-ITO-P |
138.76 |
132.82 |
126.88 |
|
|
IME 1550.5 FD-ITO-U (Full Differential) |
111.03 |
105.48 |
99.93 |
|
|
IME 1550.5 FD-ITO-P |
148.00 |
141.60 |
135.20 |
|
|
IME 1050.5 SERIES (10 um) - ITO |
1 - 4 |
5 - 9 |
10 + |
|
IME 1050.5 M-ITO-U (Monolithic) |
115.36 |
109.59 |
103.83 |
|
IME 1050.5 M-ITO-P |
152.33 |
144.71 |
137.10 |
|
IME 1050.5 CD-ITO-U (Combined Differential) |
123.85 |
117.66 |
111.47 |
|
IME 1050.5 CD-ITO-P |
160.82 |
152.78 |
144.74 |
|
IME 1050.5 FD-ITO-U (Full Differential) |
133.10 |
126.45 |
119.79 |
|
IME 1050.5 FD-ITO-P |
170.06 |
162.60 |
155.09 |
|
IME 0550 SERIES (5 um) - ITO |
1 - 4 |
5 - 9 |
10 + |
|
IME 0550.5 M-ITO-U (Monolithic) |
215.45 |
204.68 |
193.91 |
|
IME 0550.5 M-ITO-P |
252.43 |
240.81 |
229.19 |
|
IME 0550.5 CD-ITO-U (Combined Differential) |
223.94 |
212.74 |
201.55 |
|
IME 0550.5 CD-ITO-P |
260.90 |
248.86 |
236.81 |
|
IME 0550.5 FD-ITO-U (Full Differential) |
233.18 |
221.52 |
209.86 |
|
IME 0550.5 FD-ITO-P |
270.15 |
257.64 |
245.14 |
|
|
|
|
|
GOLD (Au) IME ELECTRODES - 3 mm Series |
MODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |
IME 2025.3 SERIES (20 um) - ITO |
1 - 4 |
5 - 9 |
10 + |
IME 2025.3 M-Au-U (Monolithic) |
39.00 |
37.05 |
35.10 |
IME 2025.3 M-Au-P |
66.80 |
64.46 |
62.12 |
IME 2025.3 CD-Au-U (Combined Differential) |
46.80 |
44.46 |
42.12 |
IME 2025.3 CD-Au-P |
74.60 |
71.87 |
69.14 |
IME 2025.3 FD-Au-U (Full Differential) |
62.40 |
59.28 |
56.16 |
IME 2025.3 FD-Au-P |
90.20 |
86.69 |
83.18 |
MODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |
IME 1525.3 SERIES (15 um) - GOLD |
1 - 4 |
5 - 9 |
10 + |
IME 1525.3 M-Au-U (Monolithic) |
46.80 |
44.46 |
42.12 |
IME 1525.3 M-Au-P |
74.60 |
70.87 |
67.14 |
IME 1525.3 CD-Au-U (Combined Differential) |
54.60 |
51.87 |
59.14 |
IME 1525.3 CD-Au-P |
82.40 |
78.28 |
74.16 |
IME 1525.3 FD-Au-U (Full Differential) |
70.20 |
66.69 |
63.18 |
IME 1525.3 FD-Au-P |
98.00 |
93.10 |
88.20 |
IME 1025.3 SERIES (10 um) - GOLD |
1 - 4 |
5 - 9 |
10 + |
IME 1025.3 M-Au-U (Monolithic) |
58.50 |
55.58 |
52.65 |
IME 1025.3 M-Au-P |
86.30 |
82.00 |
77.67 |
IME 1025.3 CD-Au-U (Combined Differential) |
66.30 |
63.00 |
59.67 |
IME 1025.3 CD-Au-P |
94.10 |
90.40 |
86.69 |
IME 1025.3 FD-Au-U (Full Differential) |
81.90 |
77.81 |
73.71 |
IME 1025.3 FD-Au-P |
109.70 |
105.22 |
100.73 |
IME 0525.3 SERIES (5 um) - GOLD |
1 - 4 |
5 - 9 |
10 + |
IME 0525.3 M-Au-U (Monolithic) |
93.60 |
88.92 |
84.24 |
IME 0525.3 M-Au-P |
121.40 |
116.33 |
111.26 |
IME 0525.3 CD-Au-U (Combined Differential) |
101.40 |
96.33 |
91.26 |
IME 0525.3 CD-Au-P |
129.20 |
123.74 |
118.28 |
IME 0525.3 FD-Au-U (Full Differential) |
117.00 |
111.15 |
105.30 |
IME 0525.3 FD-Au-P |
144.80 |
138.56 |
132.32 |
|
|
|
|
PLATINUM
(Pt) IME ELECTRODES - 3 mm SeriesMODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |
IME 2025.3 SERIES (20 um) - ITO |
1 - 4 |
5 - 9 |
10 + |
IME 2025.3 M-Pt-U (Monolithic) |
39.00 |
37.05 |
35.10 |
IME 2025.3 M-Pt-P |
66.80 |
64.16 |
62.12 |
IME 2025.3 CD-Pt-U (Combined Differential) |
46.80 |
44.46 |
42.12 |
IME 2025.3 CD-Pt-P |
74.60 |
71.87 |
69.14 |
IME 2025.3 FD-Pt-U (Full Differential) |
62.40 |
59.28 |
56.16 |
IME 2025.3 FD-Pt-P |
90.20 |
86.69 |
83.18 |
MODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |
IME 1525.3 SERIES (15 um) - PLATINUM |
1 - 4 |
5 - 9 |
10 + |
IME 1525.3 M-Pt-U (Monolithic) |
46.80 |
44.46 |
42.12 |
IME 1525.3 M-Pt-P |
74.60 |
70.87 |
67.14 |
IME 1525.3 CD-Pt-U (Combined Differential) |
54.60 |
51.87 |
49.14 |
IME 1525.3 CD-Pt-P |
82.40 |
78.28 |
74.16 |
IME 1525.3 FD-Pt-U (Full Differential) |
70.20 |
66.69 |
63.18 |
IME 1525.3 FD-Pt-P |
98.00 |
93.10 |
88.20 |
IME 1025.3 SERIES (10 um) - PLATINUM |
1 - 4 |
5 - 9 |
10 + |
IME 1025.3 M-Pt-U (Monolithic) |
58.50 |
55.58 |
52.65 |
IME 1025.3 M-Pt-P |
86.30 |
82.00 |
77.67 |
IME 1025.3 CD-Pt-U (Combined Differential) |
66.30 |
63.00 |
59.67 |
IME 1025.3 CD-Pt-P |
94.10 |
90.40 |
86.69 |
IME 1025.3 FD-Pt-U (Full Differential) |
81.90 |
77.81 |
73.71 |
IME 1025.3 FD-Pt-P |
109.70 |
105.22 |
100.73 |
IME 0525.3 SERIES (5 um) - PLATINUM |
1 - 4 |
5 - 9 |
10 + |
IME 0525.3 M-Pt-U (Monolithic) |
93.60 |
88.92 |
84.24 |
IME 0525.3 M-Pt-P |
121.40 |
116.33 |
111.26 |
IME 0525.3 CD-Pt-U (Combined Differential) |
101.40 |
96.33 |
91.26 |
IME 0525.3 CD-Pt-P |
129.20 |
123.74 |
118.28 |
IME 0525.3 FD-Pt-U (Full Differential) |
117.00 |
111.15 |
105.30 |
IME 0525.3 FD-Pt-P |
144.80 |
138.56 |
132.32 |
|
|
|
|
MODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |
IME 2025.3 SERIES (20 um) - ITO |
1 - 4 |
5 - 9 |
10 + |
IME 2025.3 M-ITO-U (Monolithic) |
39.00 |
37.05 |
35.10 |
IME 2025.3 M-ITO-P |
66.80 |
64.46 |
62.12 |
IME 2025.3 CD-ITO-U (Combined Differential) |
46.80 |
44.46 |
42.12 |
IME 2025.3 CD-ITO-P |
74.60 |
71.87 |
69.14 |
IME 2025.3 FD-ITO-U (Full Differential) |
62.40 |
59.28 |
56.16 |
IME 2025.3 FD-ITO-P |
90.20 |
86.69 |
83.18 |
MODEL/PART NO. |
DESCRIPTION |
UNIT PRICE (U.S.$) |
IME 1525.3 SERIES (15 um) - ITO |
1 - 4 |
5 - 9 |
10 + |
IME 1525.3 M-ITO-U (Monolithic) |
46.80 |
44.46 |
42.12 |
IME 1525.3 M-ITO-P |
74.60 |
70.87 |
67.14 |
IME 1525.3 CD-ITO-U (Combined Differential) |
54.20 |
51.87 |
49.14 |
IME 1525.3 CD-ITO-P |
82.40 |
78.28 |
74.16 |
IME 1525.3 FD-ITO-U (Full Differential) |
70.20 |
66.69 |
63.18 |
IME 1525.3 FD-ITO-P |
98.00 |
93.10 |
88.20 |
IME 1025.3 SERIES (10 um) - ITO |
1 - 4 |
5 - 9 |
10 + |
IME 1025.3 M-ITO-U (Monolithic) |
58.50 |
55.58 |
52.65 |
IME 1025.3 M-ITO-P |
86.30 |
82.00 |
77.67 |
IME 1025.3 CD-ITO-U (Combined Differential) |
66.30 |
63.00 |
59.67 |
IME 1025.3 CD-ITO-P |
94.10 |
90.40 |
86.69 |
IME 1025.3 FD-ITO-U (Full Differential) |
81.90 |
77.81 |
73.71 |
IME 1025.3 FD-ITO-P |
109.70 |
105.22 |
100.73 |
IME 0525.3 SERIES (5 um) - ITO |
1 - 4 |
5 - 9 |
10 + |
IME 0525.3 M-ITO-U (Monolithic) |
93.60 |
88.92 |
84.24 |
IME 0525.3 M-ITO-P |
121.40 |
116.33 |
111.26 |
IME 0525.3 CD-ITO-U (Combined Differential) |
101.40 |
96.33 |
98.28 |
IME 0525.3 CD-ITO-P |
129.20 |
123.74 |
118.28 |
IME 0525.3 FD-ITO-U (Full Differential) |
117.00 |
111.15 |
105.30 |
IME 0525.3 FD-ITO-P |
144.80 |
138.36 |
132.32 |
IME EVALUATION SETS |
IME DESIGN EVALUATION SET (15 um) GOLD, PLATINUM OR ITO |
Unpackaged |
Packaged |
Three discrete IME 1550 devices, one each of the following different designs but all of one conductor: |
UNIT PRICE (U.S.$) |
UNIT PRICE (U.S.$) |
IME 1550 Au - M, CD and FD (Gold) |
275.60 |
341.10 |
IME 1550 Pt - M, CD and FD (Platinum) |
275.60 |
341.10 |
IME 1550 ITO - M, CD and FD (Indium Tin Oxide) |
275.60 |
341.10 |
IME DESIGN EVALUATION SET (10 um) GOLD, PLATINUM OR ITO |
Unpackaged |
Packaged |
Three discrete IME 1050 devices, one each of the following different designs but all of one conductor: |
UNIT PRICE (U.S.$) |
UNIT PRICE (U.S.$) |
IME 1050 Au - M, CD and FD (Gold) |
335.40 |
401.00 |
IME 1050 Pt - M, CD and FD (Platinum) |
335.40 |
401.00 |
IME 1050 ITO - M, CD and FD (Indium Tin Oxide) |
335.40 |
401.00 |
IME DESIGN EVALUATION SET (5 um) GOLD, PLATINUM OR ITO |
Unpackaged |
Packaged |
Three discrete IME 0550 devices, one each of the following different designs but all of one conductor: |
UNIT PRICE (U.S.$) |
UNIT PRICE (U.S.$) |
IME 0550 Au - M, CD and FD (Gold) |
605.80 |
671.30 |
IME 0550 Pt - M, CD and FD (Platinum) |
605.80 |
671.30 |
IME 0550 ITO - M, CD and FD (Indium Tin Oxide) |
605.80 |
671.30 |
IME CONDUCTOR EVALUATION SET (15 um) M, CD or FD |
Unpackaged |
Packaged |
Three discrete IME 1550 devices, one each of the following different conductors but all of one design: |
UNIT PRICE (U.S.$) |
UNIT PRICE (U.S.$) |
IME 1550 M - Au, PT and ITO (Monolithic) |
251.91 |
317.75 |
IME 1550 CD - Au, PT and ITO (Combined Differential) |
274.83 |
340.65 |
IME 1550 FD - Au, PT and ITO (Full Differential) |
299.78 |
365.59 |
IME CONDUCTOR EVALUATION SET (10 um) GOLD, PLATINUM OR ITO |
Unpackaged |
Packaged |
Three discrete IME 1050 devices, one each of the following different conductors but all of one design: |
UNIT PRICE (U.S.$) |
UNIT PRICE (U.S.$) |
IME 1050 M - Au, PT and ITO (Monolithic) |
311.48 |
377.28 |
IME 1050 CD - Au, PT and ITO (Combined Differential) |
334.40 |
400.20 |
IME 1050 FD - Au, PT and ITO (Full Differential) |
359.36 |
425.16 |
IME CONDUCTOR EVALUATION SET (5 um) GOLD, PLATINUM OR ITO |
Unpackaged |
Packaged |
Three discrete IME 0550 devices, one each of the following different conductors but all of one design: |
UNIT PRICE (U.S.$) |
UNIT PRICE (U.S.$) |
IME 0550 M - Au, PT and ITO (Monolithic) |
581.71 |
647.55 |
IME 0550 CD - Au, PT and ITO (Combined Differential) |
604.63 |
670.44 |
IME 0550 FD - Au, PT and ITO (Full Differential) |
629.59 |
675.39 |
|
IME ACCESSORIES: Connectors and adapters for use with microfabricated Interdigitated Microsensor Electrode (IME) arrays. |
IME TEST CLIP and ADAPTERS ---> |
Perfusion Chamber |
CARRIER |
Test Clip |
ADAPTER |
ADAPTER |
ADAPTER |
Dimensions |
D
= 9 mm |
11.4 cm |
N/A |
12 cm |
30 cm |
1 meter |
Connector Type |
Micropipette |
Gold Plated Pins to PCB |
Gold Plated Pins |
Gold Plated Pins |
Gold Plated Pins |
Banana Plugs |
Number of Conductors |
2 each chamber: IN & OUT |
4 on PCB |
4 on one side |
4 + shield |
4 + shield |
4 + shield |
Lead |
N.A. |
|
N/A |
Rigid Rod |
Flexible |
Flexible |
Part No. |
PC8R-0.5 |
4-Pin CHIP CARRIER WAND |
STC 4 |
STCA-1-R |
STCA-2-P |
STCA-3-B |
Unit Price ($ US) |
$10.00 |
$ 22.00 |
$25.00 |
$62.40 |
$62.40 |
$62.40 |
|
|
|
|
|
INDEPENDENTLY ADDRESSABLE INTERDIGITATED MICROSENSOR ELECTRODES (IAIMEs) |
IAIME Series |
Unpackaged |
A total of ten (10) independently addressable microbands with five bands alternating and interdigitated from opposing sides. Each microband is 3 mm long and 5 microns wide. Spacing between each band is 5 microns. Chip is 1.5 cm x 3.0 cm x 0.05 cm. This chip uses IAIME CARRIER and Perfusion Chamber. |
UNIT PRICE (U.S.$) |
IAIME 0505-Au (Gold) |
175.00 |
IAIME 0505-Pt (Platinum) |
175.00 |
IAIME 0505-ITO (Indium Tin Oxide) |
175.00 |
|
|
|
|
|
INDEPENDENTLY ADDRESSABLE MICROBAND ELECTRODES (IAMEs) |
IAME Series |
Unpackaged |
A total of four (4) independently addressable microband electrodes. Each microband is 3 mm long. Microbands and spaces may be 5, 10, 15, or 20 microns wide. Chips are 1.0 cm x 2.0 cm x 0.05 cm: |
UNIT PRICE (U.S.$) |
IAME 0504-Au, Pt or ITO (Gold, Platinum or ITO) |
75.00 |
IAME 1004-Au, Pt or ITO (Gold, Platinum or ITO) |
70.00 |
IAME 1504-Au, Pt or ITO (Gold, Platinum or ITO) |
60.00 |
IAME 2004-Au, Pt or ITO (Gold, Platinum or ITO) |
50.00 |
|
|
|
|
|
INDEPENDENTLY ADDRESSABLE MICROBAND ELECTRODES (IAMEs)-co-INTERDIGITATED MICROSENSOR ELECTRODES - 1 mm Spaces. |
IAME-co-IME Series |
Unpackaged |
A total of four (4) independently addressable microband electrodes and a pair of 1.0 mm long, 2 um wide, 1 um spaced interdigitated microsensor electrodes. Each microband is 1.0 mm long by 2 um wide and spaced 1 um apart. Chips are 1.0 cm x 1.0 cm x 0.05 cm: |
UNIT PRICE (U.S.$) |
IAME-co-IME 2-1 Au (Gold) |
125.00 |
IAME-co-IME 2-1 Pt (Platinum) |
125.00 |
IAIME and IAME
ACCESSORIES: Connectors and |
IAIME and IAME CARRIER AND ADAPTER ---> |
ADAPTER Carrier
|
Perfusion Chamber
|
ADAPTER
|
Carrier / Adapter Dimensions: |
1.0" x 3.0" (2.54 cm x 7.62 cm) |
D = 9mm; V @ 35 ml |
(0.4" x 1.5") (1.0 cm x 11.0 cm) |
Lead Length |
2.3 cm |
N.A. |
11.0 cm |
Connector Type |
Gold Plated Pins to PCB |
Micropipette |
Gold Plated Pins to PCB |
Number of Conductors |
14 total, 7 on each end of PCB |
2 each chamber: IN & OUT |
4 each on PCB |
Lead |
Gold |
N.A. |
Gold |
Part No. |
IAIME CARRIER and Perfusion Chamber |
PC8R-0.5 |
4-Pin CHIP CARRIER WAND |
Unit Price ($ US) |
$25.00 |
$10.00 |
$ 22.00 |
|
|
|
ELECTROCHEMICAL CELL-ON-A-CHIP (ECC
IMEs): |
|
UNIT PRICE (U.S.$) |
|||||
ECC IME GOLD, PLATINUM (borosilicate glass, 10 nm Ti/W; 100 nm Au or Pt; 500 nm Si3N4) |
1 - 4 |
5 - 9 |
10 + |
|||
ECC IME 0505 Au or Pt (1.0 cm x 2.0 cm x 0.05 cm) 05 microns lines and spaces |
233.18 |
221.52 |
209.86 |
|||
ECC IME 1005 Au or Pt (1.0 cm x 2.0 cm x 0.05 cm) 10 microns lines and spaces |
133.10 |
126.45 |
119.79 |
|||
ECC IME 1505 Au or Pt (1.0 cm x 2.0 cm x 0.05 cm) 15 microns lines and spaces |
111.03 |
105.48 |
99.93 |
|||
ECC IME 2005 Au or Pt (1.0 cm x 2.0 cm x 0.05 cm) 20 microns lines and spaces |
95.00 |
90.25 |
85.50 |
|||
|
||||||
|
|
ELECTROCHEMICAL CELL-ON-A-CHIP (ECC
MDEAs): |
||||
ECC MDEA GOLD, PLATINUM (borosilicate glass, 10 nm Ti/W; 100 nm Au or Pt; 500 nm Si3N4) |
1 - 4 |
5 - 9 |
10 + |
|||
ECC MDEA 5037 Au or Pt (0.2 cm x 0.4 cm x 0.05 cm) 37 of 50 microns diameter microdiscs - Electrode assembly with connector |
150.00 |
142.50 |
135.00 |
|||
ECC MDEA 5037 Au or Pt (0.2 cm x 0.4 cm x 0.05 cm) 37 of 50 microns diameter microdiscs - chip only |
25.00 |
23.75 |
22.50 |
|||
MICRODISC ELECTRODE ARRAYS
(MDEAs): |
|
UNIT PRICE (U.S.$) |
|||
MDEA GOLD, PLATINUM (borosilicate glass, 10 nm Ti/W; 100 nm Au or Pt; 500 nm Si3N4) |
1 - 4 |
5 - 9 |
10 + |
|
MDEA 360 Au or Pt (1.0 cm x 2.0 cm) |
40.00 |
38.00 |
36.00 |
|
MDEA 250 Au or Pt (1.0 cm x 2.0 cm) |
50.00 |
47.50 |
45.00 |
|
MDEA 100 Au or Pt (1.0 cm x 2.0 cm) |
55.00 |
52.25 |
49.5 |
|
MDEA 050 Au or Pt (1.0 cm x 2.0 cm) |
60.00 |
57.00 |
54.00 |
|
ECC and MDEA
ACCESSORIES: Connectors and for use with |
ECC IME ADAPTER ---> |
Perfusion
Chamber |
STC
7 Test Clip |
CARRIER |
Carrier / Adapter Dimensions: |
D = 9mm; V @ 35 ml |
1.0" x 3.0" (2.54 cm x 7.62 cm) |
(0.4" x 1.5") (1.0 cm x 4.0 cm) |
Lead Length |
N.A. |
1.0 cm |
4.0 cm |
Connector Type |
Micropipette |
Gold Plated Pins to Spring Loaded Clip |
Gold Plated Pins to PCB |
Number of Conductors |
2 each chamber: IN & OUT |
7 on one side |
7 each on PCB |
Lead |
N.A. |
Gold |
Gold |
Part No. |
PC8R-0.5 |
STC 7 Test Clip |
7-Pin CHIP CARRIER WAND |
Unit Price ($ US) |
$10.00 |
$25.00 |
$ 22.00 |
|
|
|
|
PLANAR
METAL ELECTRODES (PMEs) MICROARAY BIOCHIP SUBSTRATES
(PMEMABioChip): |
|
UNIT PRICE (U.S.$) |
||
PMEMABioChip GOLD (borosilicate glass, 100 Å Ti/W, 1,000 Å Au) |
1 - 4 pks |
5 - 9 pks |
10 + pks |
PMEMA1x3AU BioChip (1.0“ x 3.0”) |
$200.00 |
$180.00 |
$150.00 |
PMEMABioChip PLATINUM (borosilicate glass, 100 Å Ti/W, 1,000 Å Pt) |
1 - 4 pks |
5 - 9 pks |
10 + pks |
PMEMA1x3PT BioChip (1.0” x 3.0”) |
$200.00 |
$180.00 |
$150.00 |
|
|
|
|
|
PLANAR
METAL ELECTRODES (PMEs): |
|
UNIT PRICE (U.S.$) |
||
PME GOLD (borosilicate glass, 100 Å Ti/W, 1,000 Å Au) |
1 - 4 pks |
5 - 9 pks |
10 + pks |
PME Au 118 (1.0 cm x 2.0 cm) |
$156.00 |
$148.20 |
$140.40 |
PME Au 118-P (1.0 cm x 1.0 cm) packaged |
$55.10 |
$53.35 |
$51.59 |
PME Au 218 (2.0 cm x 2.0 cm) |
$156.00 |
$148.20 |
$140.40 |
PME PLATINUM (borosilicate glass, 200 Å Ti/W, 1,000 Å Pt) |
1 - 4 pks |
5 - 9 pks |
10 + pks |
PME Pt 118 (1.0 cm x 2.0 cm) |
$156.00 |
$148.20 |
$140.40 |
PME Pt 118-P (1.0 cm x 1.0 cm) packaged |
$55.10 |
$53.35 |
$51.59 |
PME Pt 218 (2.0 cm x 2.0 cm) |
$156.00 |
$148.20 |
$140.40 |
|
PLANAR ITO ELECTRODES (PITOEs): |
For organosilane chemistry, bio-immobilizations and optical microscopy |
|||
PITOE (borosilicate glass, one side coated, 10 ohms/sq) |
1 - 4 pks |
5 - 9 pks |
10 + pks |
PITOE 118 (1.0 cm x 2.0 cm x 0.05 cm) |
$71.50 |
$67.93 |
$64.35 |
PITOE 118-P (1.0 cm x 1.0 cm x 0.05 cm) |
$55.10 |
$53.35 |
$51.59 |
PITOE 218 (2.0 cm x 2.0 cm x 0.05 cm) |
$71.50 |
$67.93 |
$64.35 |
For optical spectroscopy and spectroelectrochemistry - Fits standatrd 1.0 cm cuvette |
|||
PITOE (borosilicate glass, one side coated, 10 ohms/sq) |
1 - 4 pks |
5 - 9 pks |
10 + pks |
PITOE 150 (0.9 cm x 5.0 cm x 0.05 cm ) |
$93.60 |
$88.92 |
$84.24 |
PITOE 150-P (0.9 cm x 5.0 cm x 0.05 cm ) |
$59.00 |
$57.05 |
$55.10 |
PITOE 250 (2.0 cm x 5.0 cm x 0.05 cm ) |
$93.60 |
$88.92 |
$84.24 |
|
For electroactive polymers, biosensors, bioelectrochemistry |
|
Miniature Electodes |
UNIT PRICE (U.S.$) |
RE 803-X MINIATURE REFERENCE ELECTRODE; Agº/AgCl, 3M KCl- |
123.50 |
RE 803-RX Refurbishing Kit for Agº/AgCl electrode: 3 barrels and 1 filling solution |
71.50 |
CPE 905-X MINIATURE COMBINATION pH ELECTRODE |
335.40 |
OS-418 MINIATURE OXYGEN SENSOR |
465.00 |
|
GAS FLOW CELL SENSOR PRODUCTS |
For development of electronic noses, the study of polymer-vapor interactions by impedance and dielectric spectroscopies and for VOC sensors |
|
Gas and Vapor Phase Flow Cell with one (1) IME Sensor |
UNIT PRICE (U.S.$) |
CEC 1010.3-FD Controlled
Environment Cell |
277.40 |
IME
1010.3-FD-Au or Pt Flow Cell Sensor (refill sensor chip for
Controlled Environment Cell, CEC) |
150.00 |
|
LIQUID
FLOW CELL DETECTOR PRODUCTS |
Used as an electrochemical or impedimetric detector in low pressure liquid chromatography, flow injection analysis, biosensor development and polymer-liquid interactions |
|
Liquid Phase Flow Cell Detector with two (2) IME Sensors. (Uses IME LC 1010.3-FD) |
UNIT PRICE (U.S.$) |
FCD 1010.3-FD
Flow Cell Detector for FIA and LPLC |
$1,856.50 |
IME
1010.3-FD-Au or Pt Flow Cell Sensor (refill sensor for Flow Cell
Detector, FCD) |
150.00 |
OXYGEN SENSOR PRODUCTS |
|
UNIT PRICE (U.S.$) |
OSI-2 Dual Channel Oxygen Sensor Instrument (Sets voltage, measures oxygen sensor current) |
1500.00 |
OS-418 Miniature Oxygen Sensor with SC9 Sensor Cable |
465.00 |
SC9 Sensor Cable Sub-Minax to Sub-Minax (connects OSI-2 to OS-418) |
50.00 |
IC9-s Instrument Output Cable BNC to spade |
50.00 |
IC9-b Instrument Output Cable BNC to banana jack |
50.00 |
APPLICATION NOTES - DOWNLOAD FILES |
|
UNIT PRICE (U.S.$) |
IME1 - Applications of Interdigitated Microsensor Electrodes |
32.50 |
BA2 - Biosensor-based Assays Using EPSIS |
32.50 |
BA1 - Introduction to Biosensor-based Assays |
32.50 |
BA3 - An Impedimetric Urea Biosensor Using Microfabricated IMEs |
32.50 |
MANUALS |
|
UNIT PRICE (U.S.$) |
EPSIS 240U II Manual |
55.00 |
ALL PRICES ARE FOB RICHMOND, VA. TERMS ARE NET 30 AND SUBJECT TO CHANGE WITHOUT NOTICE. |
